Hydraulic wheel dolly
The dollies can be used to mount and dismount single or double wheels on heavy vehicles. They have hand and foot controls plus revolving wheels to give maximum maneuverability. The carriage moves on roller bearings and the arms are adjustable to cope with different wheel sizes.
| Feature | RAH 227 | RAH 227/A | RAH 227/B | |
|---|---|---|---|---|
| Capacity | lbs | 1,500 | 1,500 | 1,500 |
| A | inch | 55.5 | 55.5 | 57 |
| B | inch | 45.25 | 45.25 | 46.5 |
| C | inch | 25.5 | 25.5 | 36.25 |
| D | inch | 6.25 | 8.5 | 13 |
| E | inch | 39.25 | 39.25 | 39.75 |
| F | inch | 36.25 | 36.25 | 36.5 |
| G | inch | 45.25 | 45.25 | 46 |
| H | inch | - | 18.5 | 16.25 |
| I | inch | 30.25 | 29 | 26.25 |

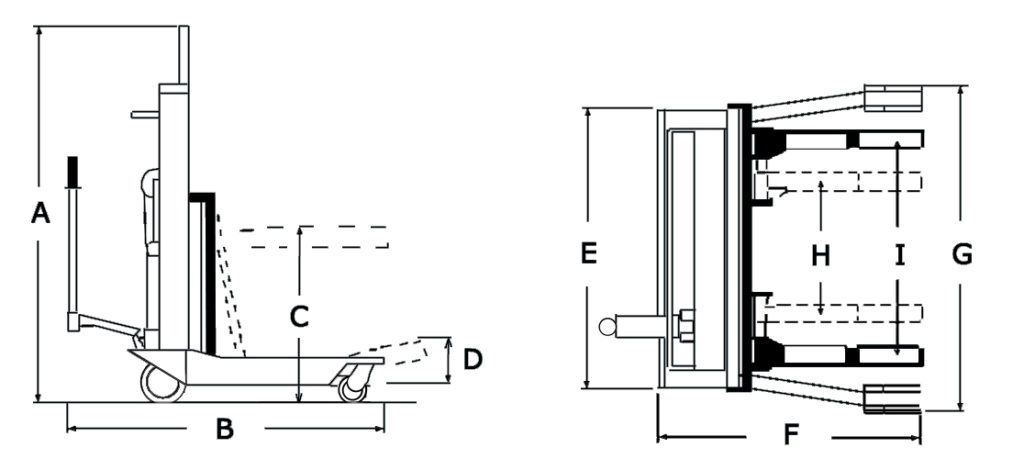

Illustration
Specificities:

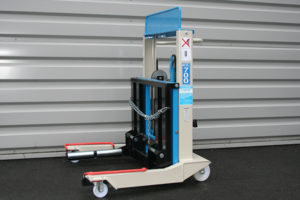

The RAH 227/A has adjustable arms that can recline and be adjusted for different size wheels.

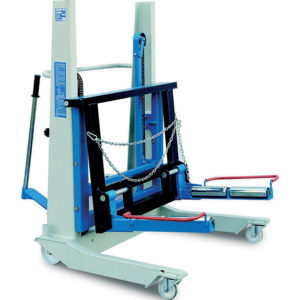

The RAH 227/B has adjustable arms that can recline and be adjusted for different size wheels. Thank to a greater lifting height and to its shape it is also suitable for mounting wheels on turning machines.
