Mobile column lifts for special vehicles
Depending on the size of the wheels and the weight of your vehicles, the SEFAC product range for special vehicles has been divided in three.
Depending on the size of the wheels and the weight of your vehicles, the SEFAC product range for special vehicles has been divided in three.
- 1200 M 100 mobile column lifts have been conceived for vehicles with tire size between 37.8 and 45.4 inches and weighting up to 88,000 lbs. These columns actually dispose of a 22,000 lbs lifting capacity per column.

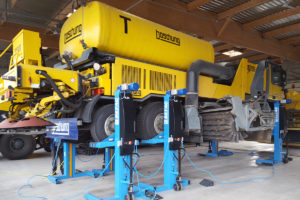

- Mobile column lifts type 1600 are traditionally used for maintenance operations on airport vehicles. They are actually suitable for vehicles with tire size variing between 45.2 and 58.5 inches.
- Mobile column lifts type 1800 (designed for quarry vehicles and construction vehicles) are more generally suitable for vehicles with tire size included between 58.5 and 64.7 inches. Besides, each column has a lifting capacity of 33,000 or 37,000 lbs. Technical specification on request)
| Feature | 1200 M 100 column lift | PMZ 4 16 082 column lift | PMV 4 16 100 column lift | |
|---|---|---|---|---|
| Capacity per column | lbs | 22,000 | 18,000 | 22,000 |
| Operating mode | Single Pair Group | Single Pair Group | Single Pair Group | |
| Control | Push button + Pendant | Push button + Pendant | Push button + Pendant | |
| Screen | NO | NO | NO | |
| Tire size | inch | 38 to 45 | 45 to 58 | 45 to 58 |
| Lifting height | inch | 72 | 72 | 72 |
| Dimensions | l (inch) L (inch) h (inch) | 42.1 x 43.3 x 100 | 49.2 x 43.3 x 99.8 | 49.2 x 43.3 x 99.8 |
| Leg height | inch | 5.5 | 5.5 | 5.5 |
| Net weight per lift | lbs | 849 | 914.9 | 914.9 |
| Motor power | kW | 3.5 | 2.9 | 3.5 |
| Dust water protection level | IP55 | IP55 | IP55 |
