Lifting table for bogies

Platform lifts

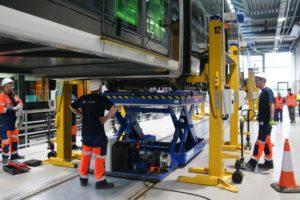

With a 13,200, 15,500 or 17,600 lbs lifting capacity, platform lifts (lifting tables) can be used to support, to lift up/down, and to move horizontally/laterally a bogie during maintenance operations.

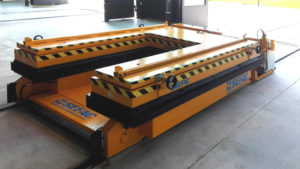

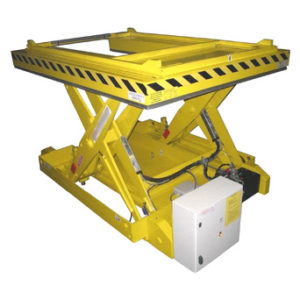

Lifting table for bogies
Lifting table for bogies

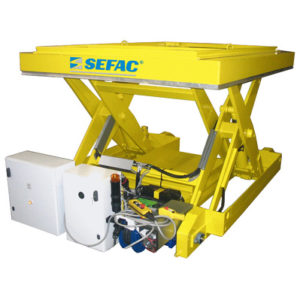

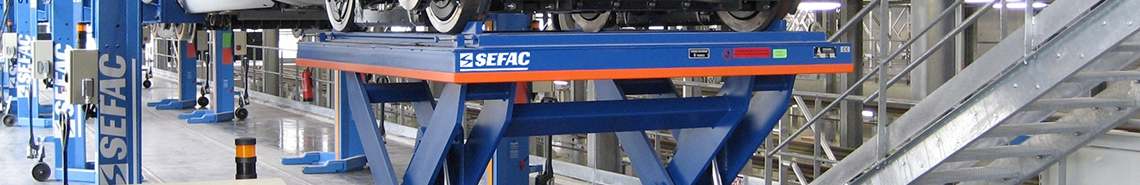

Lifting table for rail

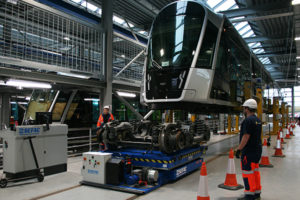

Luxtram - Luxembourg

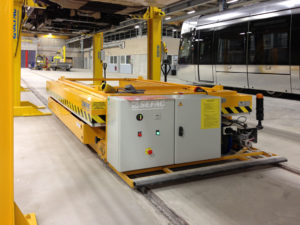

Platform lifts
SEFAC platform lifts

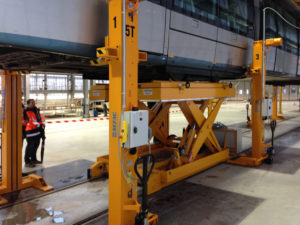

Platform lifts

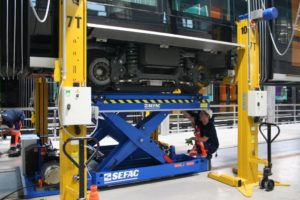

SEFAC platform lifts

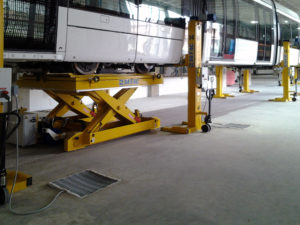

Platform lifts

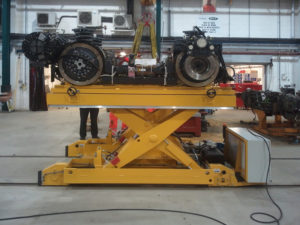

Platform lifts

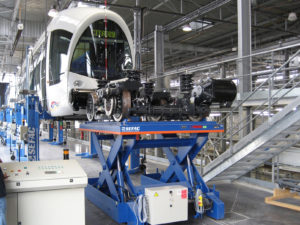

Platform lifts

The platform lifts move directly on the rails inside the workshop.
This displacement can be either manual or motorized. In this case, the operator pilots the lift using a wired remote control and/or a wireless remote control (available as an option).
The lifting table is delivered with a ball transfer plate as standard enabling an easy move of the bogie.

Lenght inch104
Width inch63
Height of the platform
closed
open
locked

inch
inch
inch

22.5
65.0
56.5
Difference with ground inch4
Lateral transfer inch+/- 1
Useful load lbs17,600
Weight
Empty
Loaded

lbs
lbs

4,400
22,000
Lifting speed Up s30
Lifting speed Down s35
Position of bogie wheels' chocks inch69 / 74 / 78
Space between rails
upper table
single slanged

inch
inch

56.5
56.5
Hole in the table inch35.5 x 67.0
Time meterstandard
Motorization Kit
Battery autonomy
Horizontal displacement low speed
Horizontal displacement high speed

h
ft/min
ft/min
option
3
6.5
50.0
