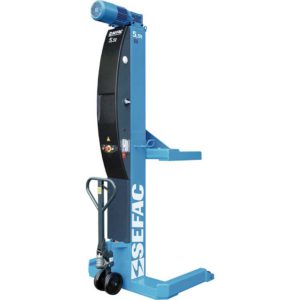

S1 column lifts

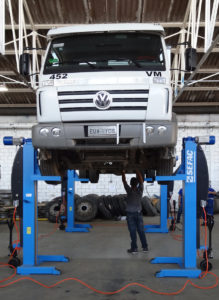

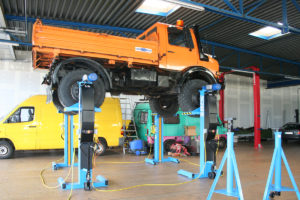

S1 column lifts can be easily used by a single operator. They facilitate all types of lifting operations and can substitute for a workshop pit. S1 column lifts are suited to the lighter vehicles in your fleet (axle load of up to 24,250 lbs).

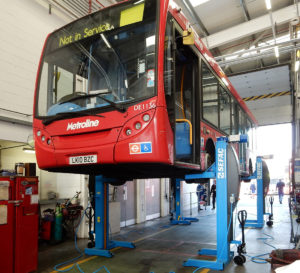

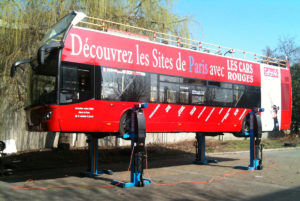

This model is traditionally employed in maintenance workshops for passenger transport (e.g. buses, etc.).
With a capacity of 12,000 lbs per column, the S1 column lift is a proven product that has been in our equipment range for more than a decade. This is versatile piece of equipment, since it can be used to form a set comprising 4, 6 or 8 columns, and therefore provide a means of lifting vehicles with 2, 3 or 4 axles.
The S1 column lift performs all the important functions of a column lift
It is focused on the essential functions of a column lift and features a particularly intuitive operating method. Furthermore, it has only one wearing part (the bronze nut), and maintenance costs are therefore minimal.
| Feature | S1 column lift | |
|---|---|---|
| Capacity per column | lbs | 12,000 |
| Number of lifts within a set | 2 / 4 / 6 / 8 | |
| Operating mode | Single Pair Group | |
| Control | Pendant | |
| Screen | NO | |
| Rim Size | inch | 12 to 20 |
| Wheel size | inch | 38 to 46 |
| Lifting height | inch | 72 |
| Dimensions | l (inch) L (inch) h (inch) | 41.5 x 41.5 x 100 |
| Leg height | inch | 5.5 |
| Net weight per lift | lbs | 738 |
| Motor power | kW | 2.2 |
| Dust water protection level | IP55 | |
| Operating mode | Wired | |
| Typical use | Bus, Coach, HD Trucks |
Trailer beam 2 x 12,000 lbs
Ref : PZM 75
When used in conjunction with a set of Sefac column lifts, the trailer beam allows operators to lift a truck trailer without reducing lifting stroke. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 112 x 35.5 x 45.25 inch
Weight: 550 lbs
Lifting capacity: max 2 x 12,000 lbs
Low-slung beam 2 x 12,000 lbs
Ref : PZM 03
The low design height of this beam enables it to lift vehicles with low chassis. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 134 x 31.5 x 7.5 inch
Weight: 550 lbs
Lifting capacity: max 2 x 12,000 lbs
Extra low-slung beam 2 x 12,000 lbs
Ref : PZM 04
The low design height of this beam enables it to lift vehicles with very low chassis. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 140 x 31.5 x 5.75 inch
Weight: 860 lbs
Lifting capacity: max 2 x 12,000 lbs
Fork’s adaptors for small vans and fork 1200
Ref : AU 412
Set of 4 adaptors for commercial vehicles enabling to lift up vehicles with wheel size between Ø 28.75 and Ø 35.5 inch. Immediate attaching / detaching.
Weight per unit: +/- 22 lbs.
Max. capacity:
– 5,500 lbs./column for wheels between Ø 28.75 and Ø 31.75 inch,
– 10,500 lbs./column for wheels between Ø 31.75 and Ø 35.5 inch.
Fork’s adaptors for cars and fork 1200
Ref : AT 412
Set of 4 adaptors for commercial vehicles enabling to lift up vehicles with wheel size between Ø 23.5 and Ø 29.5 inch. Immediate attaching / detaching.
Weight per unit: +/- 22 lbs.
Max. capacity:
– 3,750 lbs./column for wheels between Ø 23.5 and Ø 26.75 inch,
– 4,400 lbs./column for wheels between Ø 26.75 and Ø 29.5 inch.
Chassis plates
Ref : PC 412
Set of 4 plates enabling to lift up a vehicle by its chassis. Immediate attaching / detaching.
Weight per unit: +/- 55 lbs
Max. lifting capacity: 1100 lbs per column.
Cover set
Ref : PZM 65
Set of 4 covers.Thanks to these covers, you will take a better profit of your mobile column lifts, by using them outside during the high-pressure cleaning of your vehicles.
Pendant
Ref : BT 01
This remote control can be switched on from any column. Thus, you will benefit from a better visibility and more freedom of movement.
