S2 mobile column lift

The S2 column lift

The S2 column lift is the ideal tool for commercial vehicle maintenance technicians. It is a considerable asset in preventing the musculoskeletal disorders experienced by individuals working underneath vehicles. Technicians can work in an upright position and adjust the height of the vehicle in relation to their own. Thus, they can carry out inspection and repair of brakes, suspension, wheels, etc. under the very best conditions.

Thanks to its high capacity, it meets the majority of lifting needs

S2 column lifts are suited to operations on buses with an axle load of up to 36,000 lbs. With its high lifting capacity (18,000 lbs per column), the S2 column lift is suited to the heaviest vehicles in standard fleets (and thus can also be used on lighter ones) to meet all your everyday workshop needs. These column lifts are mobile (each column is fitted with a drawbar) and adapted to all vehicles, regardless of length or axle spacing.

The S2 column lift requires minimum maintenance

S2 column lifts can be used to form a set composed of 4, 6 or 8 columns. They have cabled interconnection and are conducive to intuitive use. The maintenance of the column is minimal: replacement of a grease nipple for the bronze screw nut (the only part subject to wear).

S2 mobile column lift

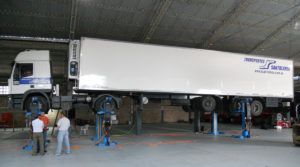

Trailer lifted by SEFAC S2

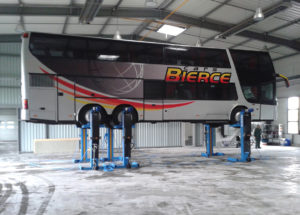

Coach lifted by SEFAC S2

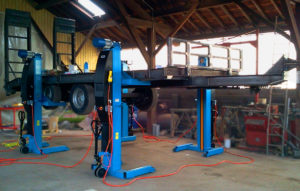

Truck lifted by SEFAC S2
FeatureS2 column lift
Capacity per column lbs18,000
Number of columns within a set4 / 6 / 8
Operating modeSingle
Pair
Group
ControlPendant
ScreenNO
Tire size inch38 to 46
Lifting height inch72
Dimensions l (inch)
L (inch)
h (inch)
41.5
x 43.5
x 100
Leg height inch5.5
Net weight per column lbs849
Motor power kW2.9
Dust water protection levelIP55
Operating modeWired
Typical useBus,
Coach,
HD Trucks,
Civil works vehicles,
Garbage Trucks










(*) All mandatory fields must be completed.

Trailer beam PZM 75

Trailer beam 2 x 12,000 lbs

Ref : PZM 75

When used in conjunction with a set of Sefac column lifts, the trailer beam allows operators to lift a truck trailer without reducing lifting stroke. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 112 x 35.5 x 45.25 inch
Weight: 550 lbs
Lifting capacity: max 2 x 12,000 lbs


Low-slung beam 2 x 6 t - PZM 03

Low-slung beam 2 x 12,000 lbs

Ref : PZM 03

The low design height of this beam enables it to lift vehicles with low chassis. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 134 x 31.5 x 7.5 inch
Weight: 550 lbs
Lifting capacity: max 2 x 12,000 lbs


Extra low-slung beam 2 x 7.5 t - PZM 04

Extra low-slung beam 2 x 12,000 lbs

Ref : PZM 04

The low design height of this beam enables it to lift vehicles with very low chassis. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 140 x 31.5 x 5.75 inch
Weight: 860 lbs
Lifting capacity: max 2 x 12,000 lbs


Wheel adaptors for small commercial vehicles AU 412

Fork’s adaptors for small vans and fork 1200

Ref : AU 412

Set of 4 adaptors for commercial vehicles enabling to lift up vehicles with tire size between 28.75 and 35.5 inch. Immediate attaching / detaching.
Weight per unit: +/- 22 lbs
Max. capacity:
– 5,500 lbs/column for tires between 28.75 and 31.75 inch,
– 10,500 lbs/column for tires between 31.75 and 35.5 inch.


Wheel adaptors for cars AT 412

Fork’s adaptors for cars and fork 1200

Ref : AT 412

Set of 4 adaptors for commercial vehicles enabling to lift up vehicles with tire size between 23.5 and 29.5 inch. Immediate attaching / detaching.
Weight per unit: +/- 22 lbs
Max. capacity:
– 3,750 lbs/column for tires between 23.5 and 26.75 inch,
– 4,400 lbs/column for tires between 26.75 and 29.5 inch.


Chassis plate PC 412

Chassis plates

Ref : PC 412

Set of 4 plates enabling to lift up a vehicle by its chassis. Immediate attaching / detaching.
Weight per unit: +/- 55 lbs
Max. lifting capacity: 1100 lbs per column.


Protection cover PZM 65

Cover set

Ref : PZM 65

Set of 4 covers.Thanks to these covers, you will take a better profit of your mobile column lifts, by using them outside during the high-pressure cleaning of your vehicles.






Remote control BT 01

Pendant

Ref : BT 01

This remote control can be switched on from any column. Thus, you will benefit from a better visibility and more freedom of movement.
