S3 SEFAC mobile column lift

The S3 column lift

S3 heavy-duty commercial vehicle column lifts have a capacity of 18,000 lbs per column and offer a user-friendly lifting solution for maintenance managers and their teams.

A touchscreen and easy-to-understand interface for maintenance operations

The S3 column lift is the only column lift in the SEFAC range equipped with a touch screen. It is the ideal piece of equipment when you are seeking a user-friendly solution for a commercial vehicle garage.

A column lift with numerous advantages

Endowed with an industrial strength MMI (Man Machine Interface), easy to move since it is the lightest of its range and comprising only one wearing part (bronze screw nut), it boasts several lift speeds.

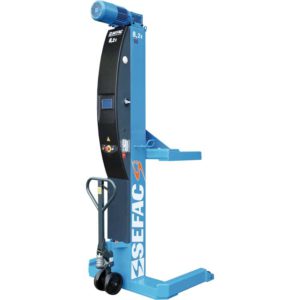

S3 SEFAC mobile column lift

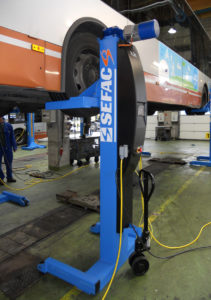

Bus lifted by SEFAC S3

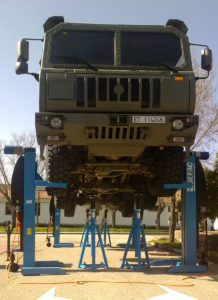

Military engine lifted by SEFAC S3

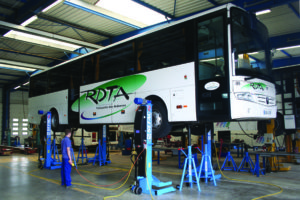

Bus lifted by SEFAC S3

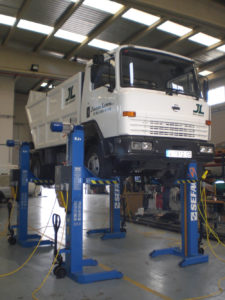

Dump truck lifted by SEFAC S3
FeatureS3* column lift
ALI model #1 200-4
ALI model #1 200-6
Capacity per column lbs18,000
Number of columns within a set4 / 6 / 8
Operating modeSingle
Pair
Group
ControlPendant + touch screen
ScreenYES only on the primary
Tire size inch38 to 46
Lifting height inch72
Dimensions l (inch)
L (inch)
h (inch)
41.5
x 43.5
x 100
Leg height inch5.5
Net weight per column lbs849
Motor power kW2.9
Dust water protection levelIP55
Operating modeWired
Typical useBus,
Coach,
HD Trucks,
Civil works vehicles,
Garbage Trucks

*S3 lifts model #1 200-4 and #1 200-6 are ALI certifiedALI Logo











(*) All mandatory fields must be completed.

Trailer beam PZM 75

Trailer beam 2 x 12,000 lbs

Ref : PZM 75

When used in conjunction with a set of Sefac column lifts, the trailer beam allows operators to lift a truck trailer without reducing lifting stroke. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 112 x 35.5 x 45.25 inch
Weight: 550 lbs
Lifting capacity: max 2 x 12,000 lbs


Low-slung beam 2 x 6 t - PZM 03

Low-slung beam 2 x 12,000 lbs

Ref : PZM 03

The low design height of this beam enables it to lift vehicles with low chassis. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 134 x 31.5 x 7.5 inch
Weight: 550 lbs
Lifting capacity: max 2 x 12,000 lbs


Extra low-slung beam 2 x 7.5 t - PZM 04

Extra low-slung beam 2 x 12,000 lbs

Ref : PZM 04

The low design height of this beam enables it to lift vehicles with very low chassis. The beam comes with swivel wheels for ease of movement.
Overall dimensions: 140 x 31.5 x 5.75 inch
Weight: 860 lbs
Lifting capacity: max 2 x 12,000 lbs


Wheel adaptors for small commercial vehicles AU 412

Fork’s adaptors for small vans and fork 1200

Ref : AU 412

Set of 4 adaptors for commercial vehicles enabling to lift up vehicles with tire size between 28.75 and 35.5 inch. Immediate attaching / detaching.
Weight per unit: +/- 22 lbs
Max. capacity:
– 5,500 lbs/column for tires between 28.75 and 31.75 inch,
– 10,500 lbs/column for tires between 31.75 and 35.5 inch.


Wheel adaptors for cars AT 412

Fork’s adaptors for cars and fork 1200

Ref : AT 412

Set of 4 adaptors for commercial vehicles enabling to lift up vehicles with tire size between 23.5 and 29.5 inch. Immediate attaching / detaching.
Weight per unit: +/- 22 lbs
Max. capacity:
– 3,750 lbs/column for tires between 23.5 and 26.75 inch,
– 4,400 lbs/column for tires between 26.75 and 29.5 inch.


Chassis plate PC 412

Chassis plates

Ref : PC 412

Set of 4 plates enabling to lift up a vehicle by its chassis. Immediate attaching / detaching.
Weight per unit: +/- 55 lbs
Max. lifting capacity: 1100 lbs per column.


Protection cover PZM 65

Cover set

Ref : PZM 65

Set of 4 covers.Thanks to these covers, you will take a better profit of your mobile column lifts, by using them outside during the high-pressure cleaning of your vehicles.






Remote control BT 01

Pendant

Ref : BT 01

This remote control can be switched on from any column. Thus, you will benefit from a better visibility and more freedom of movement.
